Temperature and Humidity Monitoring for Pharmaceutical Clean Rooms

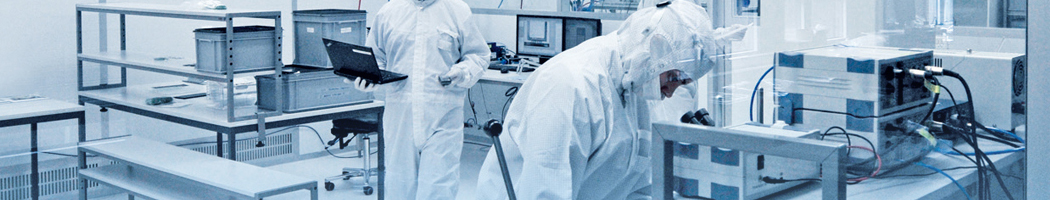

Clean Rooms are workplaces where contamination is controlled. Pharmaceutical clean rooms assist the pharmaceutical industry meet the demand for more sterility and purity in drug production. Keeping cleanroom temperature and humidity levels consistent is essential in the cleanroom environment.
The Humidity Levels in the Cleanroom
Common cleanroom guidelines state that Relative Humidity (RH) levels in cleanrooms should remain between 30-40% RH year-round. Usually, temperatures below 21 degrees Celsius (70 degrees Fahrenheit) have a +/- 2% RH band. High humidity levels can cause a host of cleanroom problems, such as the growth of bacteria, product degradation/damage, corrosion, and static electricity. Static electricity directly interferes with the movement of particles inside the cleanroom, which can cause serious production problems.
The Temperature Levels in the Cleanroom
Now that you have a better understanding of cleanroom guidelines relating to humidity levels, let’s take a look at standards for cleanroom temperature. In general, the temperature of a cleanroom should be 21 degrees Celsius, or 69.8 degrees Fahrenheit. Usually, a fluctuation of 2 degrees celsius is permissible.
Freshliance’s Solution

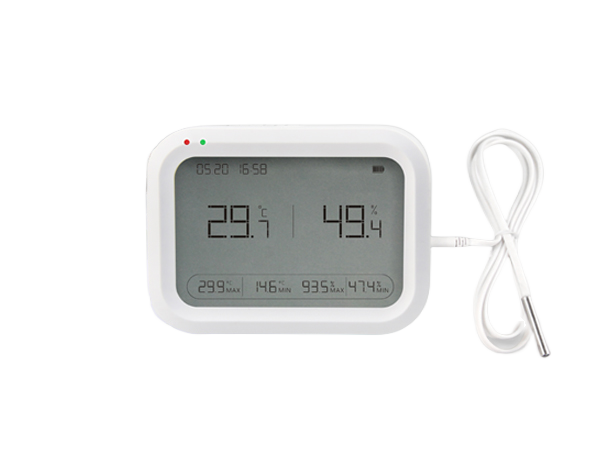

As you’ve learned from this post, even small fluctuations in cleanroom temperature and humidity levels can cause serious issues for cleanroom staff and production as a whole. Getting the right temperature and humidity monitor, and choosing reliable environmental monitoring solution supplier can help with that. The Freshliance COEUX-WIFI wireless temperature and humidity sensor can be placed in the pharmaceutical cleanrooms to display the temperature and humidity in real time. This logger comes with audible and visual alarms. You can set up 3 groups of high and low alarms on our configuration software. Once the temperature and humidity data is abnormal, the wireless temperature and humidity data logger will display an LCD indication and audible and visual alarms. It will aloud 70dB with 3 meters so that the staff can find the abnormal status and adjust temperature and humidity in time. COEUS-WIFI wireless temperature and humidity data logger is durable and last long. It comes with a built-in rechargeable lithium battery and supports the direct power supply function. It can work up to 360 days. You don’t have to be bothered by frequent charges.
·Model: COEUS-WIFI
·Temperature Range: -20℃~+50℃(Internal sensor)
·Optional external probe: -30℃~+70℃,-90℃~+200℃,-200℃~+90℃
·Temperature Accuracy: ≤±0.5℃(-90℃~50℃),≤±1.0℃(Others)
·Humidity Range (Internal sensor only): 0 ~ 99% (No dews)
·Humidity Accuracy: ≤±3% RH
·Parameters configure through the app
·Transmit data through the Wifi network
·Audible and visual alarms, the alarm can be mute
·Battery rechargeable, support direct power supply
Contact Us
Freshliance specialize in providing IoT solutions for temperature, humidity, light, gas and other environmental monitoring and control, and offering stand-alone IoT environmental monitoring and control products such as PDF/CSV, Bluetooth, NFC, WIFI, NB-IoT, LORA, 4G/5G, etc. temperature and humidity data loggers. No matter the kind of controlled environment at hand, Freshliance has solutions you can count on. Learn more about our products, and contact us with any questions.
