Gateway Real-time Temperature and Humidity Monitoring

Gateway Real-time Temperature and Humidity Monitoring

Easily connect the gateway to your local WiFi

Easily paired with Bluetooth sensors via Bluetooth communication

Data review and management via the APP or web platform

Persistent caching during offline mode and data re-upload after network recovery

Comprehensive data analysis, filtration and graphing

Email and SMS alert

Android and iOS version APP available

Free data cloud storage for 2 years

Introduction

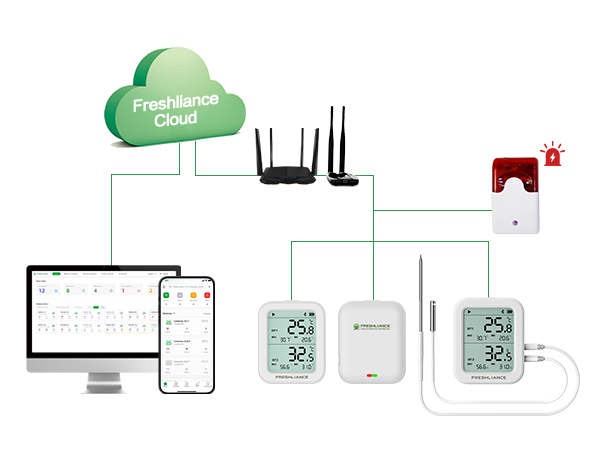

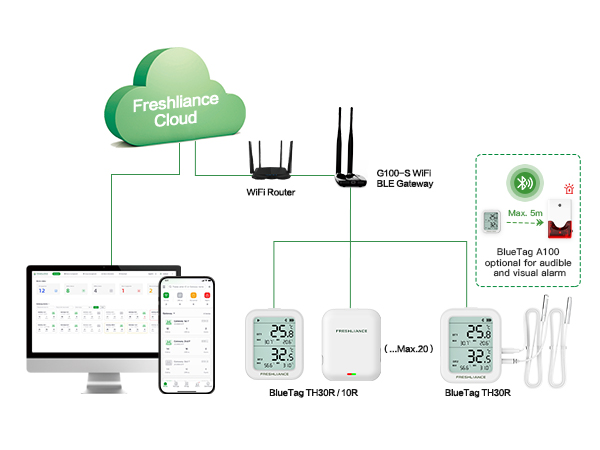

This system is a real-time temperature/humidity monitoring system for cold room, lab, small warehouse and other small areas. It is composed of BlueTag series data logger, G100-S gateway, router, cloud platform and mobile APP, etc. In this system, BlueTag series data loggers record temperature and humidity on site and continuously transmit all data to the G100-S WiFi gateway via Bluetooth communication. And then G100-S transmits all the data to the cloud in real time via WIFI communication. This system can support up to 20 pieces of configurable Bluetooth loggers. Via our mobile APP or PC platform, users can remotely check real-time temperature and humidity monitoring, live change and data history, and get SMS or email alarm, if any. For hard-to-reach or other conditions, one or two external probes can be used with BlueTag series loggers.



Features



Easily connect the gateway to your local WiFi

We provide a free APP for users to connect the gateway to their local WIFI network. Users only need to download the APP and then do as instructed.


Easily paired with Bluetooth sensors via Bluetooth communication

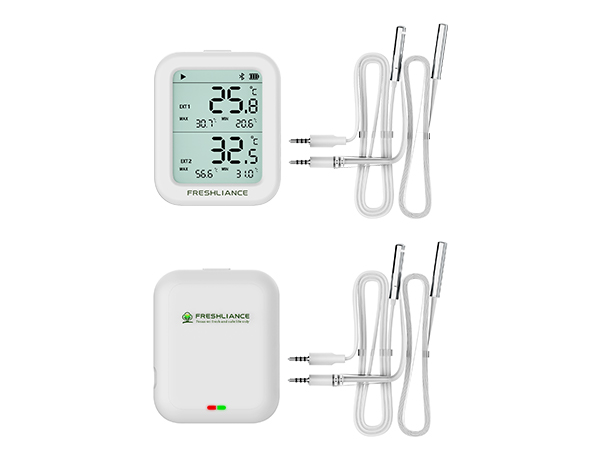

After connecting the gateway to local WiFi network, users can bind BlueTag series data loggers to the gateway via Bluetooth communication, for data monitoring. Up to 20 BlueTag loggers can be bound to one gateway. All the loggers are configurable and may have one or two external probes as needed.

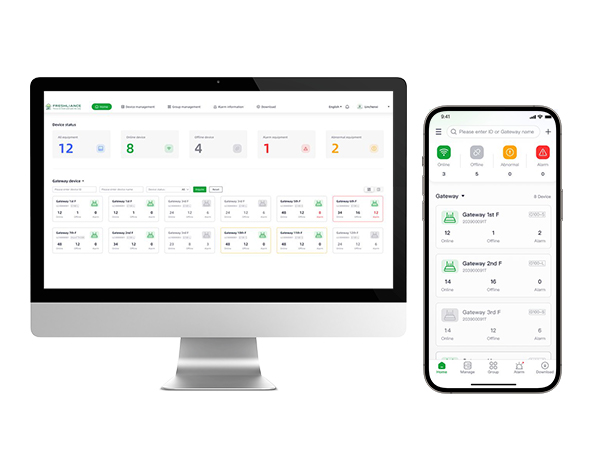

Real-time and historical data viewed via the APP or web platform

After both the gateway and BlueTag loggers are bound to the APP, it means the real time monitoring system has been successfully built. The BlueTag loggers will automatically monitor temperature and humidity and transmit all data to the gateway, which will then transmit data to the cloud. For real-time visibility to the data, we provide the APP FreshLink and a web platform.


Comprehensive data analysis, filtration and graphing

Both the APP and web platform can automatically summarize, analyze and display all data in a graph, so as to help users process data and make decisions in a higher efficiency.


Persistent caching during offline mode and data re-upload after network recovery

In case of communication failure, this real-time monitoring system will automatically cache all offline data on the Bluetooth data loggers and re-upload them after communication restoration.


Email and SMS alert

In gateway configuration, users can set Email address and phone number information for receiving data alarm. Then alarm information will be notified via Email or SMS in case of exceeding the preset limits.


Android and iOS version APP available

Users can log in to the APP to monitor and manage all measurement data, and both the Android and iOS versions are available for the APP, compatible with all types of smart phones. Users can also check data via the web platform.



Free data cloud storage for 2 years

All measurement data will be automatically uploaded to the cloud, to enable users to remotely view and manage in real time. For data security and later use, this system will store all data collected on the cloud for two years at no cost.



Specifications


WiFi Gateway:


Model

G100 WiFi Bluetooth Gateway

Antenna Type

External antenna*2

Antenna Gain

6dBi

Power

DC 5V/1A, Mini-USB

Standby Current

≤40mA

Maximum Current

≤90mA

Maximum Connections

20 sensors

Communication Network

WiFi/Bluetooth

WiFi Frequency Band

2.4GHz

Bluetooth Range

100m (open area)

Operation System

APP of Android and iOS and Web

Working Temperature

-20℃~+55℃

Working Humidity

5%~95%RH (non-condensing)

Storage and Transportation

-40℃~+70℃

Dimensions

Device: 93mm*62mm*21mm

Antenna: 19.5mm*13mm

Weight

97g


Bluetooth Sensors for Storage:


Model

BlueTag TH10R

BlueTag TH10R-I

BlueTag TH30R

BlueTag TH30R-I

BlueTag TH30R-ETU

Internal Probe Type

Temperature and humidity

External Probe

Optional

External Probe Channels

Max. 2 probes

External Probe Type

See External Probe List

Internal Temperature Range

-30℃~+70℃

Internal Temperature Accuracy

±0.5℃ F.S.

Internal Humidity Range

0~100%RH

Internal Humidity Accuracy

±3%RH

Temperature Units

℃, ℉

Alarms

Max. 6 Alarm Points

Report

PDF/CSV

Connection

Bluetooth 5.2

Start Delay

0minute~72hours

Logging Interval

1minute ~99minutes

Memory Capacity

20000 readings each probe

Device Dimensions

83mm*68mm*20.5mm

Battery

Rechargeable lithium battery

Installation

Hanging, Folding stand

Weight

85g(Main device)

90g(Main device)



External Probe List:



External Probe Type

-30℃~+70℃

-30℃~+70℃

-40℃~+85℃

-80℃~+200℃

-90℃~+400℃

-90℃~+80℃

-90℃~+200℃

-196℃~+200℃

Temperature Accuracy

±0.5℃(-90℃~+70℃); ±1.0 (Others)

Humidity Range

N/A

0-100% RH

N/A

Humidity Accuracy

N/A

3% RH

N/A

Cable Length

2m, 5m, 10m, 15m or 20m (5 adhesive cable clips every 2m, for cable management)



Bluetooth Sensors for Logistics:


Model

BlueTag T10

Memory Capacity

Max. 65,000 readings

Shelf Life

1 year

Start Delay

0 minute-72 hours

Battery Life

1 year

Logging Interval

 1 minute-99 minutes

Wireless Connection

Bluetooth 5.2

Battery

3.0V CR2032 lithium battery

APP Language

Chinese, English, French, German, Portuguese, Russian, Spanish

APP OS

Android, IOS

Temperature Unit

℃, ℉

Report Format

PDF & CSV

Temperature Range

-30℃~+70℃

Temperature Accuracy

±0.5℃ F.S.

Weight

7.8 g

Dimension

48mm*31mm*5mm

Installation

3M adhesive tape

Certification

CE, RoHS, EN12830











Applications

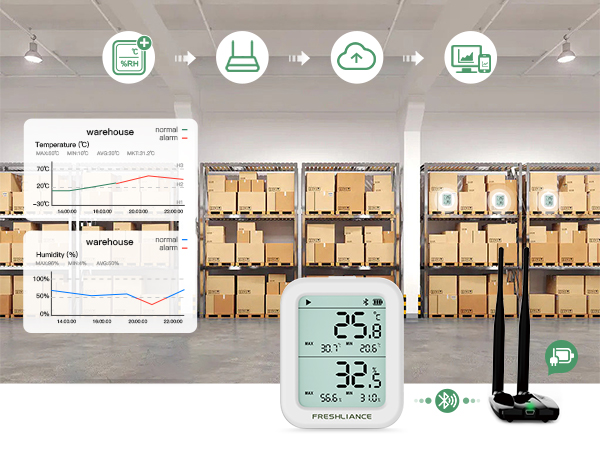

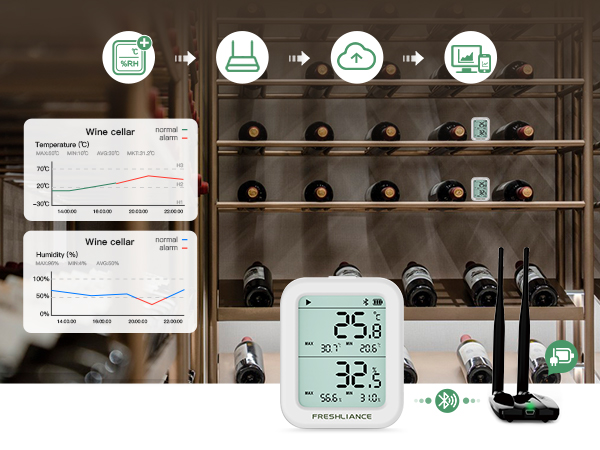

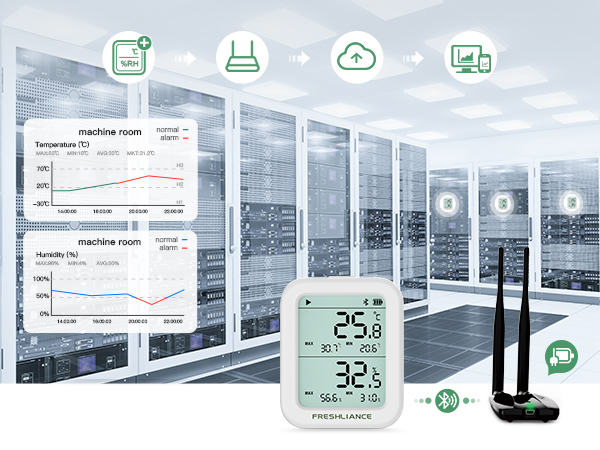

This system is a real-time temperature/humidity monitoring system for cold room, lab, small warehouse and other small areas.



FreshLink


FreshLink is a mobile APP designed for Freshliance’s real time temperature monitoring solutions with the gateways, and WiFi devices, etc. It is compatible with Android and iOS systems, and is composed of five pages: Home, Manage, Group, Alarm and Download, respectively for device status, real-time and historical data, usage records, device groups, data alarms, and data reports, etc. Using this APP, users can wirelessly configure and control the gateways, and WiFi devices, etc, as well as realize remote data tracking, filtration, analysis, and export in real time.

It works with the temperature monitoring solutions based on the gateways, and WiFi devices, etc.
