4G Real time monitoring for temperature, humidity, location, light and vibration
APP and PC platform for real-time data tracking and processing
Real time positioning on the E-map
Notifications via LED indicator, Email, and SMS
Airplane mode
USB port for device charging and local report generation
Buffered temperature probe
Introduction

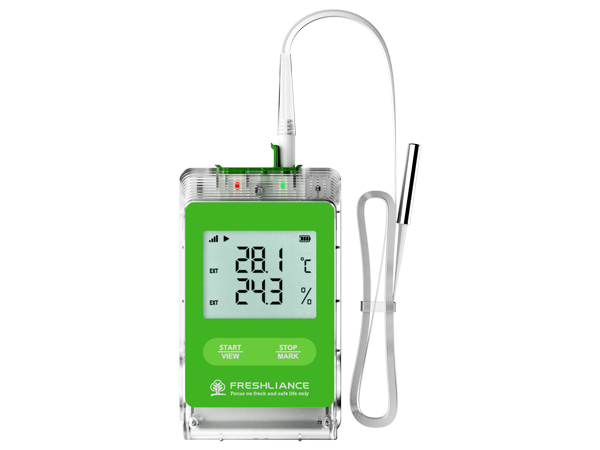

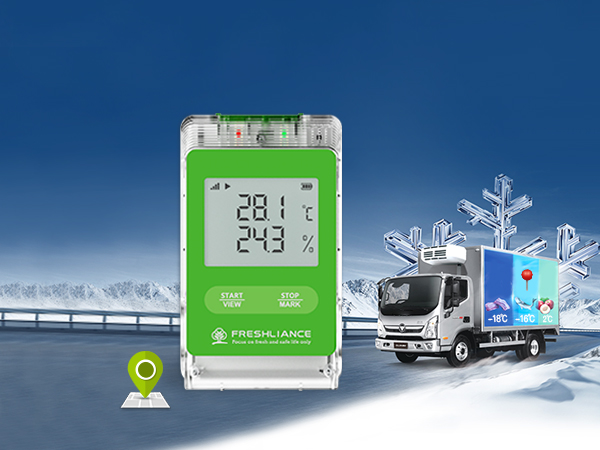

Fresh Tracker 10 is a 4G data logger for real-time temperature, humidity, location, light and vibration monitoring. The logger records real-time and history data during the whole logistics process and transfers the data to Freshliance Cloud. The location data is provided based on LBS base station or GPS service. All data are accessible via mobile APP and computer platform. Airplane mode is configurable for air transport. It is an ideal instrument for logistics and quality control.
Features

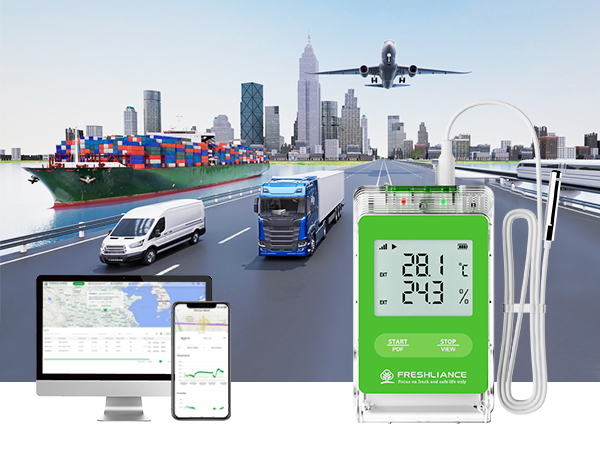

Real time monitoring and positioning

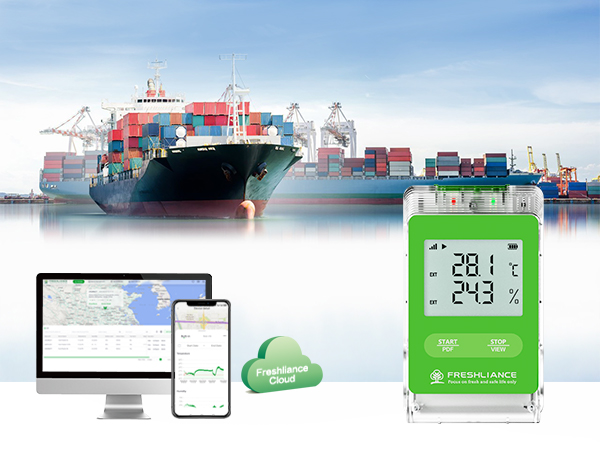

The logger monitors temperature, humidity, location, light and vibration in real time and transfers the monitoring data to Freshliance Cloud via 4G network with the configured uploading interval. Particularly, an E-map is provided on both the mobile APP and computer platform based on configurable LBS base station or GPS service for users to track location in real time.
APP and PC platform for device control, and data tracking and processing
The loggers come with two operation terminals, mobile APP and computer platform., enabling users to remotely configure and control the loggers, and track all monitoring data in real time. Besides, they feature powerful data summarization and processing functions, helping users more in data management and decision making.
Persistent caching during offline mode, and data re-upload after network recovery
The logger will not stop recording and storage during offline mode. And the data that is not successfully uploaded during network failure can be automatically re-uploaded after network recovery.

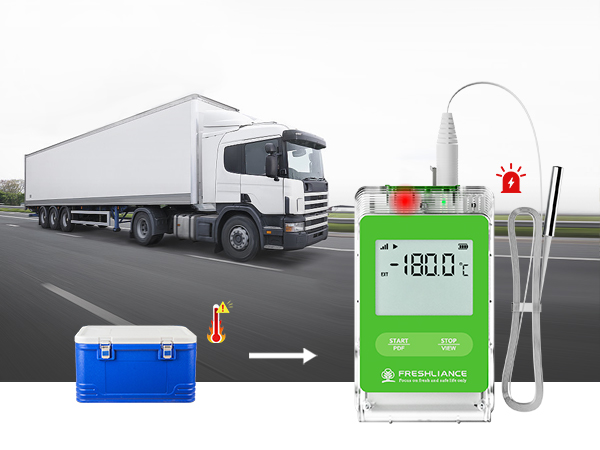

Real time alarm notification
An alarm will be notified via the LED indicator on the device and SMS/Email from the platform or APP.
Data filtration by date
With our free APP or web platform, the user can view the data of a certain period.
Airplane mode and other logging parameters configurable
The device can be freely configured. In addition to start delay, logging interval, uploading interval, and alarm settings, etc., airplane mode can be also set as needed. If it is set, the device will automatically enter airplane mode at the preset start time. In this mode, the device only records data and does not upload data (the 4G module is turned off and there is no network signal). When the end time is up, the device will automatically exit the mode and resume normal operation after uploading historical data.
Temporary report available
During normal working status, a temporary report can be generated by connecting the logger to a computer or remotely generated through our free APP or web platform.
Data privacy
Both the APP and web platform are password protected.

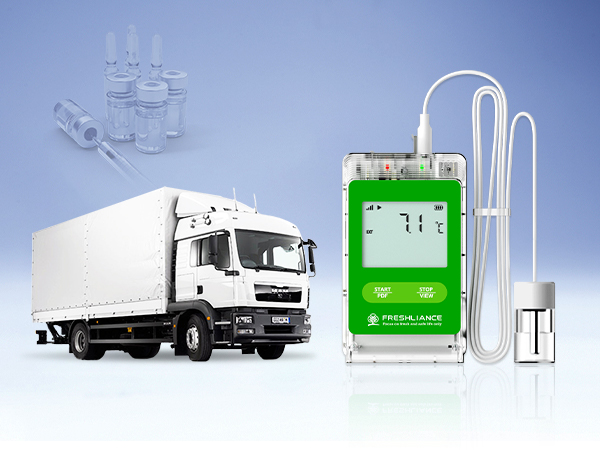

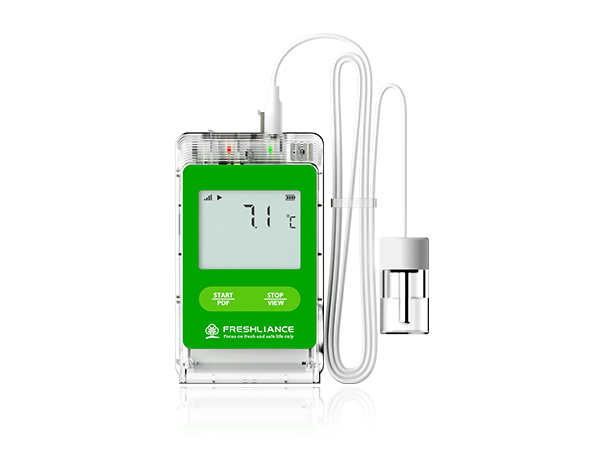

Propylene glycol encased temperature probe for vaccine monitoring
It is designed to buffer readings against temporary air temperature shifts caused by opening doors or loading coolers and accurately simulate the thermal changes experienced by products stored in the monitored environment.
It is ideal for vaccines, pharmacies and walk-in coolers, etc.
Model | Fresh Tracker 10 | Fresh Tracker-ETU |
Built-in Sensor | -20℃~+60℃, ±0.5℃ | |
0~100%RH, ±3%RH | ||
External Probe | See the External Probe List | |
Temperature Units | ℃/℉ | |
Logging Interval | User configurable | |
Upload Interval | User configurable | |
Airplane Mode | User configurable | |
Memory Capacity | Max. 20,000 readings each probe | |
Operation System | Web, APP | |
Cellular Network | 4G(LTECat1) with 2G fallback | |
Positioning Technology | LBS positioning, GPS optional | |
Battery | 3.7V lithium battery (rechargeable), UN38.3 complied | |
Installation | 3M adhesive tape, hanging | |
Charging Port | Type-C DC5V/2A | |
Local Report | USB Type-C interface to download full trip report | |
Weight | 200g (Main device) | |
Dimensions | 101mm*60mm*34mm | |
Externl Probe List:
Sensor Type | Range | Accuracy | Insulation Option | Features |
NTC sensor | -30℃~+70℃ | ±0.5℃ (-30℃~+50℃) ±1.0℃(+50℃~+70℃) | PVC cable | Cost effective |
RTD sensor | -196℃~+200℃ | ±0.5℃ (-100℃~+80℃) ±1.0℃ (Other) | Teflon cable | Anti-high and low temperature, high corrosion resistance |
Digital temperature sensor | -90℃~+200℃ | ±0.3℃ (-40℃~+100℃) ±0.5℃ (-80℃~-40℃; +100℃~+150℃) ±1.0℃ (Other) | Silicone cable | Highly flexible, waterproof, high temperature resistance |
Temperature and humidity sensor | -40℃ ~+85℃ | ±0.5℃ F.S. | Flexible ultra thin cable | Good sealing effect, for wiring in enclosed or sealed spaces |
0-100%RH | ±3%RH (25℃, 20%~90%RH) ±5%RH (Other) | |||
Standard cable length: 2m; Customizable length available: 5m, 10m, 15m or 20m.) | ||||
Fresh Tracker 10 is a real time temperature and humidity data logger with location, based on IOT platform. It is suitable for the cold-chain logistics and storage of fruits and vegetables, drinks, fresh produce, dairy products, vaccines, etc.
The most important aspect of the cold chain is to control the temperature and humidity within a proper range, so as to maximize product performance and prolong product life cycle. With this logger, the user can remotely get real time temperature and humidity data via our free APP and web platform and take specified corrective actions to minimize the loss.
And with LBS base station positioning and 4G(LTE_Cat1)/2G technology, the logger enables the user to easily get the real time location of products and control the whole logistics route.
Ttracker
Ttracker is a mobile APP designed for Freshliance Fresh Tracker series. Both Android and iOS versions are available. It supports remote device configuration and control, online data viewing, filtration and analysis, powerful graphing functionality (with the automatically analyzed results of max., min., avg. and MKT value), management of device record, group and template, remote alarm notification via SMS and Email, temporary and final report, and APP settings, etc. As a tool for Freshliance real time data loggers, this APP provides all services worldwide and even provides an E-map for global positioning of Fresh Tracker series. With the E-map, users can quickly identify the location of a specific device, with brief monitoring data and waybill information.
Besides, the APP supports 24/7 data collection & analysis during the transit process, persistent caching during offline mode and data re-upload after network recovery.
On the home page of the APP, users can also visually check the status of all devices added and immediately take precautions.
It works with Fresh Tracker series, including Fresh Tracker 1 and Fresh Tracker 10, etc.
