Introduction

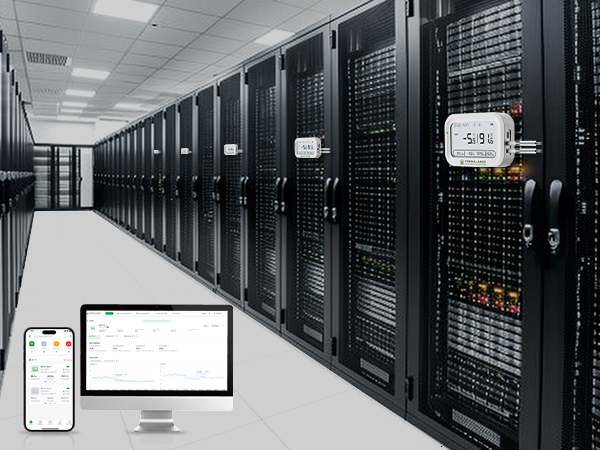

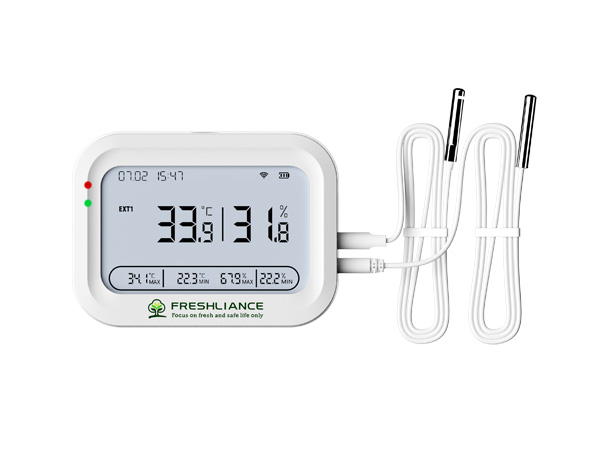

COEUS-WiFi and COEUS-4G are the multi-use lOT data logger for real-time temperature and humidity monitoring, and data storage and review. They are configurable with our APP and then all monitoring data will be automatically uploaded to the Freshliance Cloud through WiFi or 4G network accordingly. Up to two external probes can be optionally selected. They are suitable for the environmental monitoring of cold rooms, especially the freezers and refrigerator.
Features
Set and update settings remotely
These real time data loggers can be easily configured and reconfigured with the APP FreshLink, and even the computer platform, including logging interval, upload interval, alarm settings, and alarm notifications, etc.

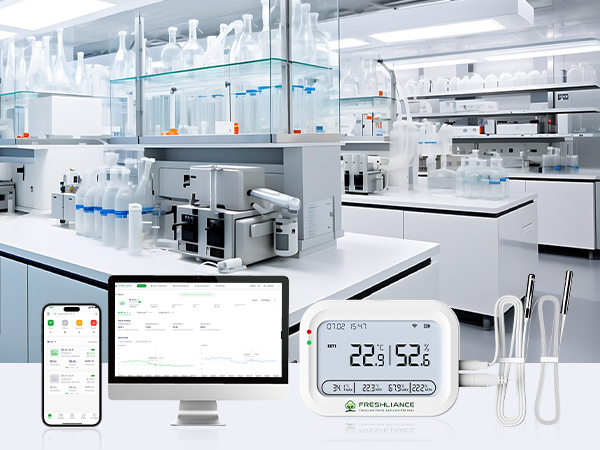

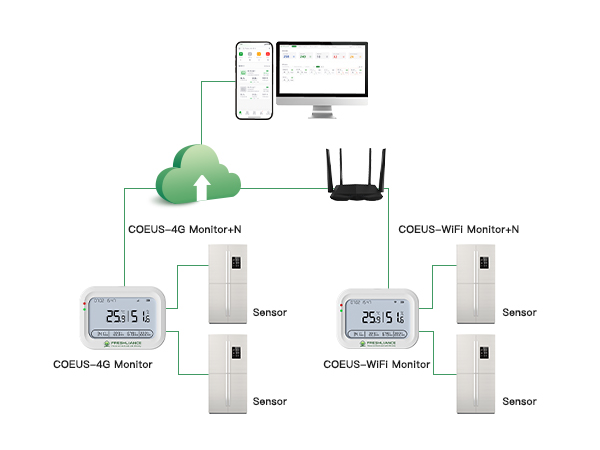

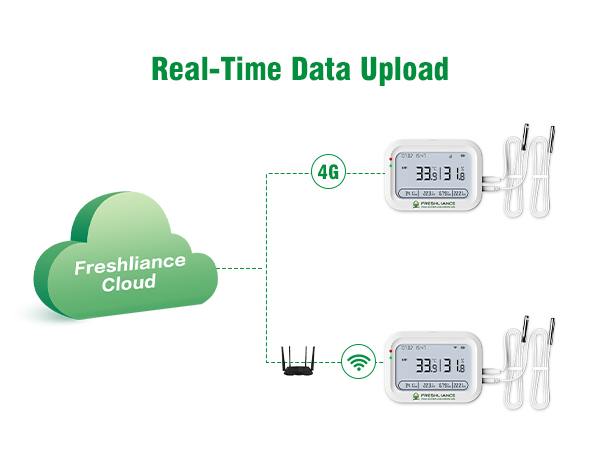

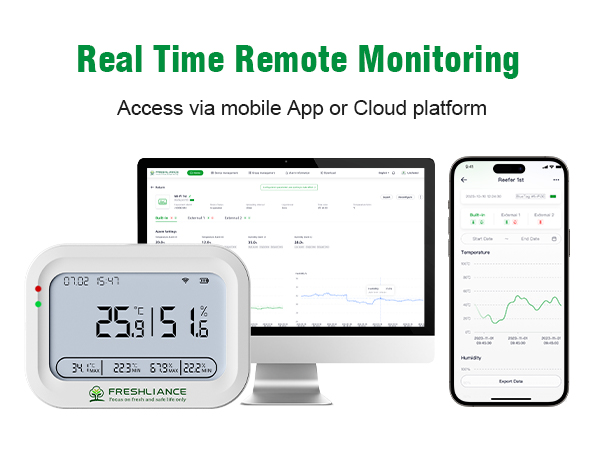

Data transmission to the Cloud via WIFI/4G, and data review by APP and computer platform

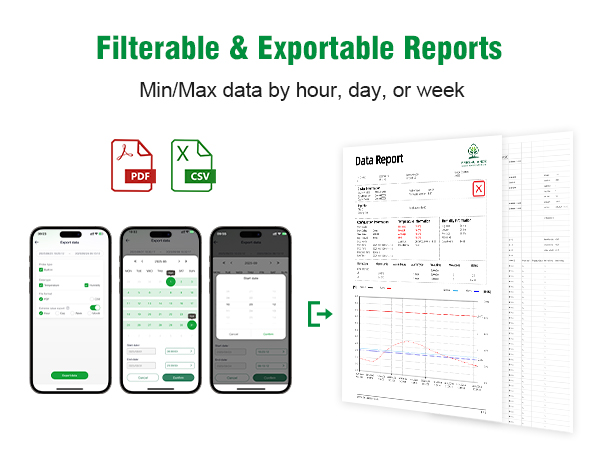

These data loggers monitor data as configured and transfer the data to the Freshliance Cloud via WiFi or 4G network accordingly. All data are accessible via the APP and the computer platform, with data graphing, statistics, analysis, and processing.

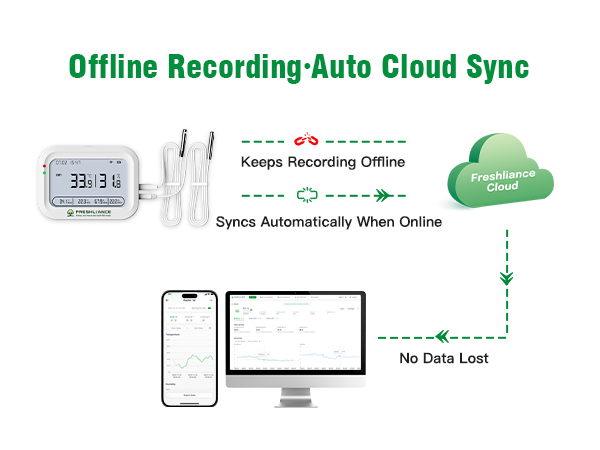

Persistent caching during offline mode, and data re-upload after network recovery
These data loggers support 24/7 data monitoring and uploading as configured, and allow the data to be cached on the main device during offline mode and re-uploaded after network restoration, so as to ensure the data integrity.

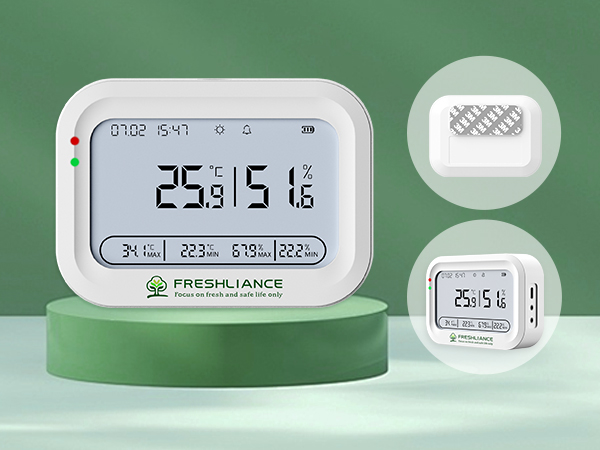

Large LCD screen with backlight for intuitive display
An LCD screen, 85mm*52mm, is designed to intuitively display current temperature and humidity, Max./Min. temperature and humidity, date and time, battery level and communication status, etc.
Rechargeable Battery
These data loggers are designed with a built-in rechargeable lithium battery of 2600mAh, which can be available while charging, so as to ensure the long-term stability of data monitoring.

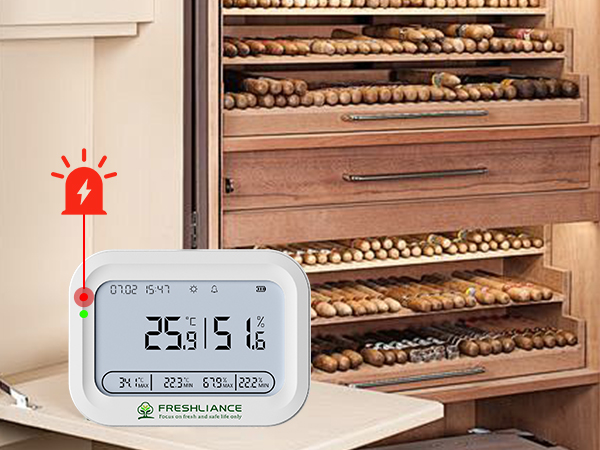

Instant, Real-time Alarms
Up to 6 alarm points can be set. When the preset thresholds are exceeded, alarm notifications will be sent via SMS, email and APP push remotely, as well as locally via flashing red indicator and the buzzer on the main device.
Multiple installation modes: Stand on end, hanging, etc.
These data loggers can be flexibly installed or placed anywhere according to the actual monitoring environment.

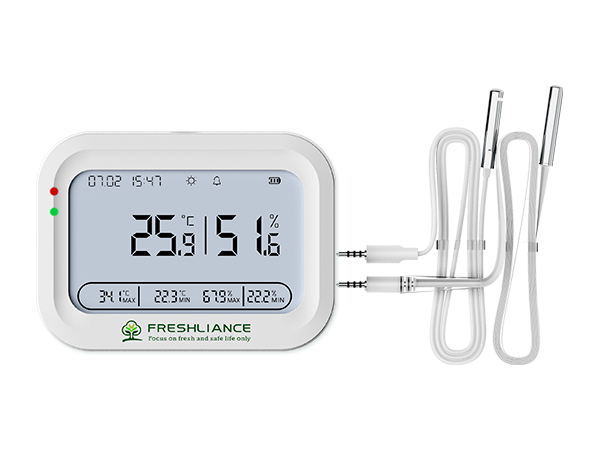

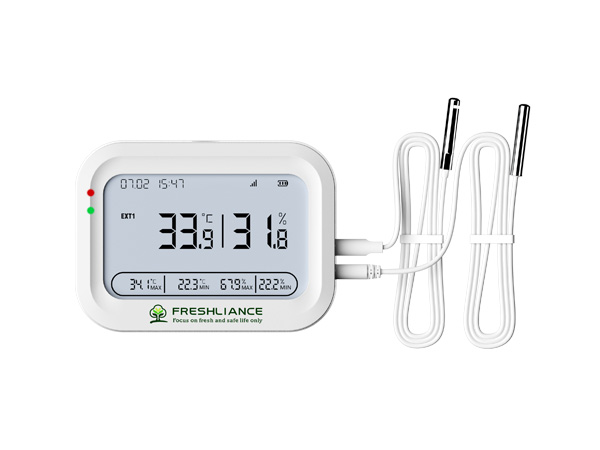

Multiple probe length and insulation options for the external probes
The external pluggable cable is normally 2m long and other cable lengths are customizable; cable insulation materials are also customizable, including PVC, Teflon, Silicone and flexible ultra thin cable, etc.

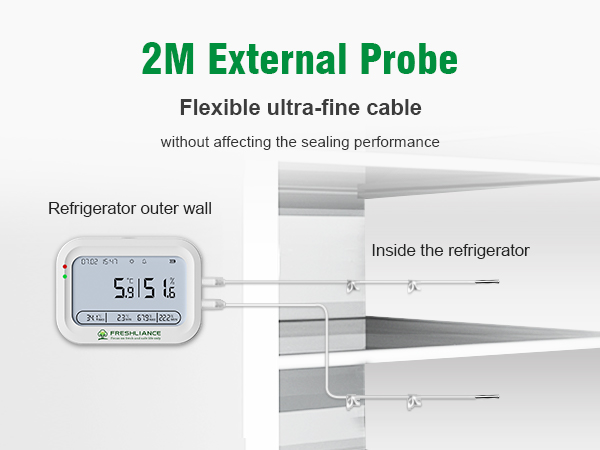

Flexible ultra thin cable, 0.3mm thick and 7.5mm wide, is suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head as required.
Specifications
Model | COEUS-WiFi | COEUS-4G |
Data Upload Network | WiFi | 4G |
Device Configuration Network | Device AP | 4G |
Maximum Power Consumption | ≤ 126mA | ≤ 150mA |
Built-in Sensor | -20℃ ~+ 60℃ ±0.5℃ F.S. |
5% ~ 95% (Without condensation) ±3%RH (25℃, 20%~90%RH) ±5%RH (Other) |
External Probes | See the External Probe List |
Memory Capacity | Max. 120,000 readings |
Battery | Rechargeable lithium battery |
Power Port | USB-Type C |
Power Input | 5V/2A (DC) |
Charging Time | About 3.5 hours |
Power Consumption in Operation | ≤ 150uA |
Display | LCD |
Alarm Mode | Audible and visual alarm |
Standby Time | Max. 90 days (uploading interval: one hour) |
Device Dimensions | 109mm(L)*33mm(W)*80mm(H) |
Screen Dimensions | 85mm*52mm |
Weight | 145g |
Externl Probe List:
Sensor Type | Range | Accuracy | Insulation Option | Features |
NTC sensor | -30℃~+70℃ | ±0.5℃ (-30℃~+50℃) ±1.0℃(+50℃~+70℃) | PVC cable | Cost effective |
RTD sensor | -196℃~+200℃ | ±0.5℃ (-100℃~+80℃) ±1.0℃ (Other) | Teflon cable | Anti-high and low temperature, high corrosion resistance |
Digital temperature sensor | -90℃~+200℃ | ±0.3℃ (-40℃~+100℃) ±0.5℃ (-80℃~-40℃; +100℃~+150℃) ±1.0℃ (Other) | Silicone cable | Highly flexible, waterproof, high temperature resistance |
Temperature and humidity sensor | -40℃ ~+85℃ | ±0.5℃ F.S. | Flexible ultra thin cable | Good sealing effect, for wiring in enclosed or sealed spaces |
0-100%RH | ±3%RH (25℃, 20%~90%RH) ±5%RH (Other) |
Standard cable length: 2m; Customizable length available: 5m, 10m, 15m or 20m.) |
Application

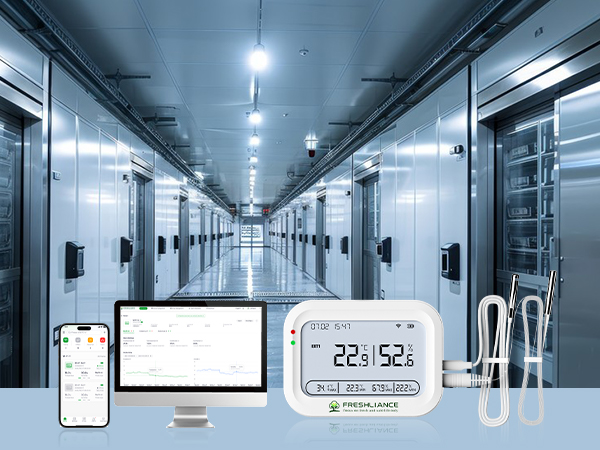

COEUS series WiFi/4G wireless data logger are mainly used for the temperature and humidity monitoring of cold rooms, especially the fridges and freezers. They will automatically upload all monitoring data to the cloud via WiFi or 4G network accordingly. Besides, they have a large LCD screen to help users to intuitively view the current temperature and humidity, Max. and Min. temperature and humidity values, date and time, etc.
