Why Does the Printing Industry Require Temperature and Humidity Control?

Author：Freshliance Update time：2022-11-02 Hits：


Freshliance BlueTag TH20 Bluetooth temperature and humidity data logger can be used to monitor temperature and humidity changes in places designed for the storage and printing of paper and cardboard to ensure an efficient process and excellent and consistent quality of the printed product.

In successful printing of any kind, paper, ink, and water had to always be in a fine balance. So the working temperature & humidity has a great impact on print quality. Temperature & humidity will mainly affect the ink and the substrate characteristic under operation.

The ideal ambient conditions for different printing technologies

Type	Temperature	Humidity (RH)
Digital Laser Printing	26 ~ 27°C	50 ~ 55％
Offset Printing	25 °C	55％
Inkjet Printing	25 ~ 27°C	45 ~ 55

The results for not monitoring temperature & humidity

·In digital printing the moisture content can affect the toner adhesion, paper jams and the fuser roller temperature.

·In offset it can affect the interaction between the ink and the press, the paper and the press, and the ink and paper.

·Inkjet is affected by many of the same issues but is even more susceptible to dot gain or ink spreading, drying delays and ink show through.

Our solution

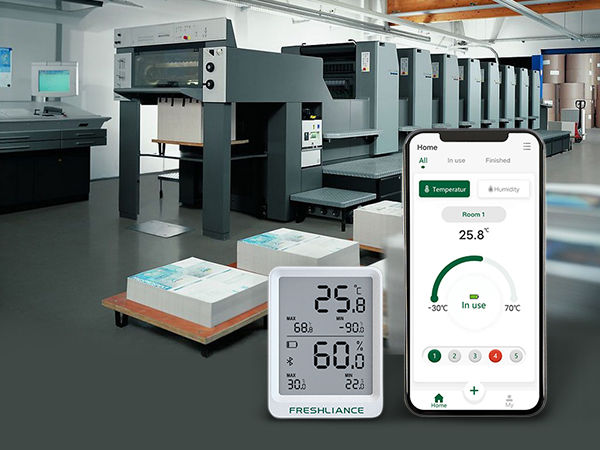

Freshliance BlueTag TH20 Bluetooth temperature and humidity data logger can be used to monitor temperature and humidity changes in print room to ensure an efficient process and excellent and consistent quality of the printed product. Freshliance BlueTag TH20 BlueTooth wireless temperature and humidity sensor can be attached to the wall. This bluetooth temperature and humidity sensor features compact design for small occupation and large LCD screen for detailed real time data display. After downloading our T-Keeper APP in the Google Store and connecting the bluetooth temperature data logger to the APP, you can preset all parameters on your phone, including alarm points, which will assist you greatly in finding the abnormal temperature and humidity in the print room. Besides, thanks to its Bluetooth function, the bluetooth temperature logger can achieve remote monitoring. You can check data and reports on your phone. The report with tables and graphs will assist your staff greatly to analysis situation to avoid futher loss.


·Model: BlueTag TH20

·Temperature range: -30℃~+70℃

·Temperature accuracy: ±0.3℃

·Humidity range: 0~100%RH

·Humidity accuracy: ±3.0%RH

·Parameters configurable

·Intelligent alarm alerts

·View real-time and historical data through the APP

·Export data files in PDF and CSV formats

·Super-thin body and low consumption

Contact us

Freshliance Electronics Co. specializes in the development, manufacture, and sales of temperature and humidity data loggers, environmental monitoring and online tracking and recording systems. Contact us to get the temperature and humidity monitoring solution tailored for you.
