Paired by Bluetooth and review history by APP
Support Android and IOS
Multilingual app
Free data filtering by minute
Comprehensive data analysis, filtration and graphing
Data synchronization among multiple users.
Up to three monitoring channels (External probes optional)
Flexible ultra thin cable optional (0.3mm thick and 7.5mm wide)
Buffered temperature probe

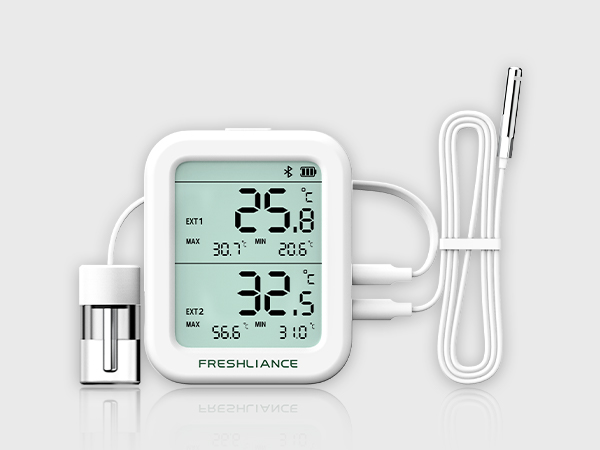

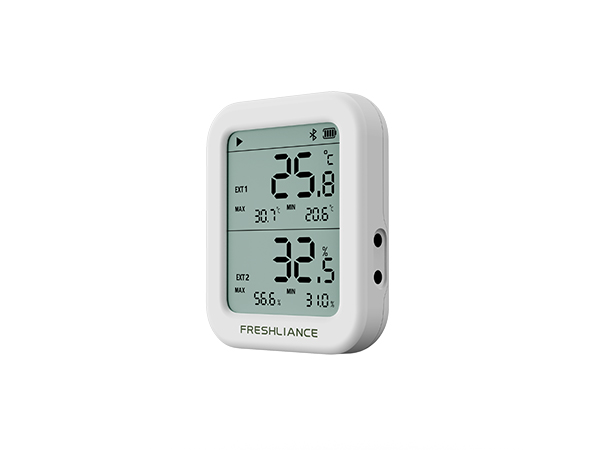

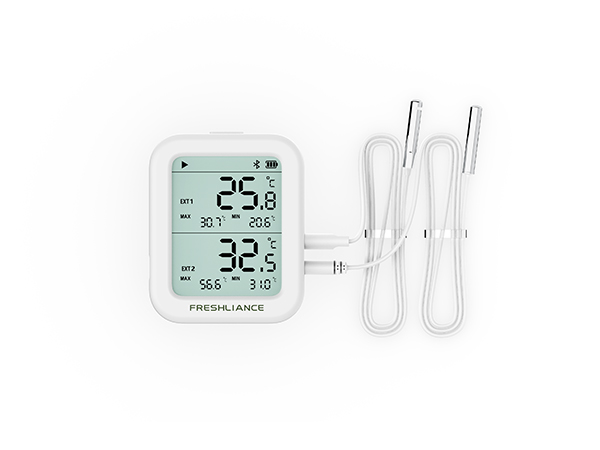

BlueTag TH30 is a multi-use temperature and humidity data logger based on Bluetooth wireless communication technology, convenient for users to read and get the report by APP. The device can be optionally set with one or two external probes. It is ideal in freezer, medicine cabinet, wine cellar, warehouse, greenhouse, laboratory, supermarket, incubator, refrigerator car and other scenarios where accessibility and mobility are crucial.
Paired by Bluetooth and review history by APP
When in range, users can easily pair this Bluetooth data logger via Bluetooth communication, and then use Freshliance's free APP Tkeeper to remotely program this data logger and view all recorded data, no need to open the container or vehicles, etc., so as to minimize the adverse effect on the cold chain monitoring.

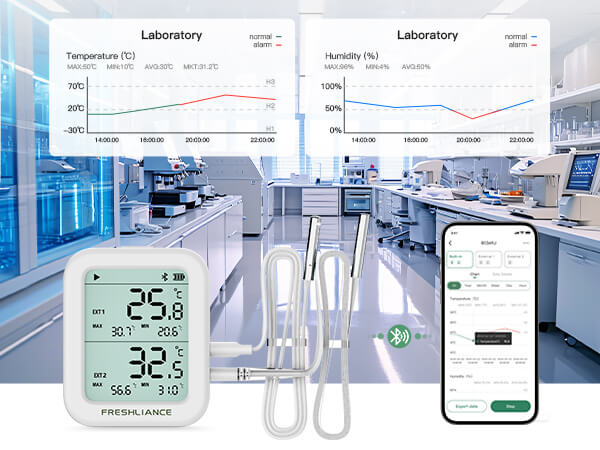

Comprehensive data analysis, filtration and graphing
This APP features powerful data analysis, filtration and graphing functionality, with the automatically analyzed results of max., min., avg., and MKT value, etc., so as to help users to view all data more intuitively.

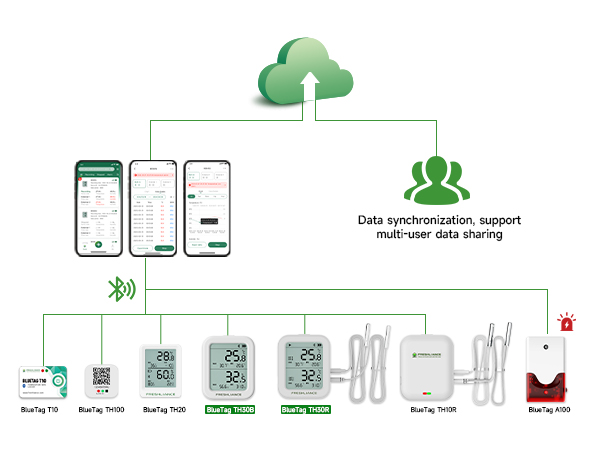

Data synchronization among multiple users
This collaborative APP allows multiple users to view online simultaneously. When one user uses the APP to view the recorded data of the data logger, all the data viewed will be automatically synchronized to other users.
Free data cloud storage for 2 years
All data can be stored at our cloud platform for 2 years at no cost.
Support Android and IOS
This APP is available in Android and iOS versions.

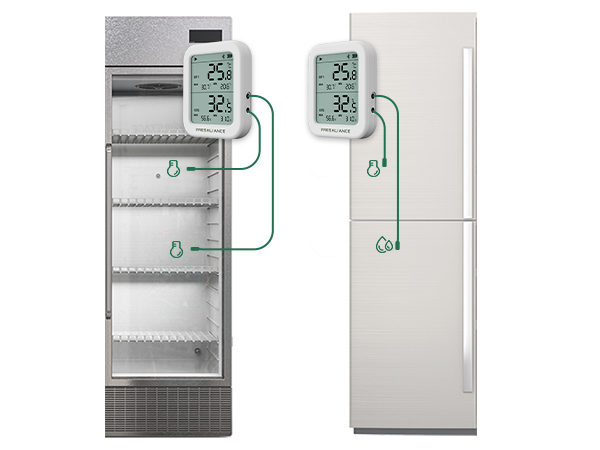

Up to three monitoring channels (External probes optional)
In addition to the built-in sensor, this Bluetooth data logger can also be optionally equipped with one or two external probes for temperature and humidity monitoring. And the data recorded by each sensor/probe will be separately recorded, viewed and exported.
Multilingual user interface
The Tkeeper APP supports multiple languages, including Chinese, English, French, German, Portuguese, Russian, Spanish and Arabic, etc., more friendly for users to use.
Data filtration by minute at no cost
Data filtering is the process of narrowing down the most relevant information from a large dataset using specific conditions or criteria. For data export, the APP allows users to filter and sort data by minute at no cost. It makes the analysis more focused and efficient.

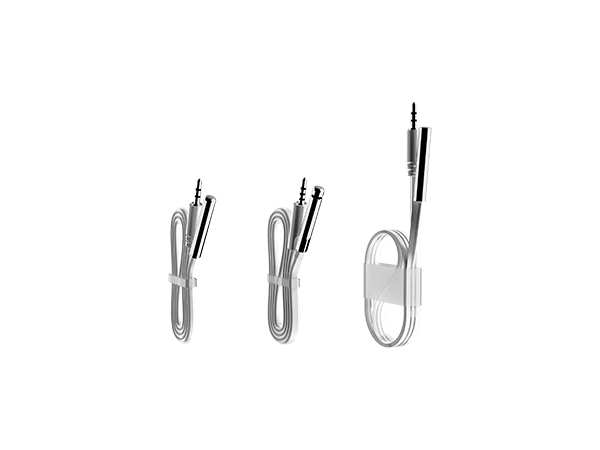

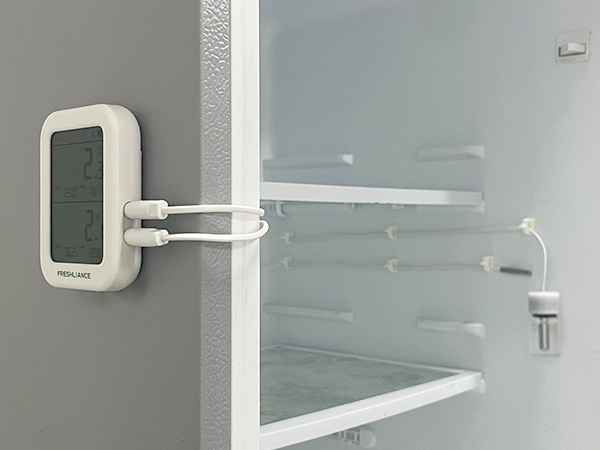

Flexible ultra thin cable optional
This flexible ultra thin cable, 0.3mm thick and 7.5mm wide, is ultra thin and slim, wiring in enclosed or sealed spaces. This cable is designed to be 2m long and other lengths are customizable. Besides, this cable features high temperature resistance, fast data transmission, and high softness and foldability.
Propylene glycol encased temperature probe for vaccine monitoring
It is designed to buffer readings against temporary air temperature shifts caused by opening doors or loading coolers and accurately simulate the thermal changes experienced by products stored in the monitored environment.
It is ideal for vaccines, pharmacies and walk-in coolers, etc.
Technical Parameters
Model | BlueTag TH30B | BlueTag TH30R | BlueTag TH30R-I | BlueTag TH30R-ETU |
Communication Distance | 50m (open space) | |||
Internal Probe Type | Temperature and humidity | |||
External Probe | × | Optional | √ | |
External Probe Channels | × | Max. 2 probes | ||
External Probe Type | × | See External Probe List | ||
Built-in Sensor | -30℃~+70℃; ±0.5℃ F.S. | |||
0~100%RH; ±3%RH | ||||
Temperature Units | ℃, ℉ | |||
Alarms | Max. 6 Alarm Points each probe | |||
Report | PDF/CSV | |||
Connection | Bluetooth 5.2 | |||
Start Delay | 0minute~72hours | |||
Logging Interval | 1minute ~99minutes | |||
Memory Capacity | 20000 readings each probe | |||
APP Language | Chinese, English, French, German, Portuguese, Russian, Spanish | |||
Certificate | CE, FCC, EN12830, GMP, IATA, RoHS, HACCP, RTCA DO-160G | |||
Device Dimensions | 83mm*68mm*20.5mm | |||
Battery | 2*Replaceable AAA batteries | Rechargeable lithium battery | ||
Installation | Hanging, Folding stand | |||
Weight | 85g | 90g (Main device) | ||
Externl Probe List:
Sensor Type | Range | Accuracy | Insulation Option | Features |
NTC sensor | -30℃~+70℃ | ±0.5℃ (-30℃~+50℃) ±1.0℃(+50℃~+70℃) | PVC cable | Cost effective |
RTD sensor | -196℃~+200℃ | ±0.5℃ (-100℃~+80℃) ±1.0℃ (Other) | Teflon cable | Anti-high and low temperature, high corrosion resistance |
Digital temperature sensor | -90℃~+200℃ | ±0.3℃ (-40℃~+100℃) ±0.5℃ (-80℃~-40℃; +100℃~+150℃) ±1.0℃ (Other) | Silicone cable | Highly flexible, waterproof, high temperature resistance |
Temperature and humidity sensor | -40℃ ~+85℃ | ±0.5℃ F.S. | Flexible ultra thin cable | Good sealing effect, for wiring in enclosed or sealed spaces |
0-100%RH | ±3%RH (25℃, 20%~90%RH) ±5%RH (Other) | |||
Standard cable length: 2m; Customizable length available: 5m, 10m, 15m or 20m.) | ||||
Applications
BlueTag TH30B/TH30R Bluetooth temperature and humidity data logger is easy to use and can monitor and record environmental temperature and humidity around the clock. With the Bluetooth communication technology, the user can remotely view and analyze both real time and historical data. This logger can be applied in the fields like smart house, food, archives management, drug storage, greenhouse, animal farming.
For example, in the archives management, paper articles are extremely sensitive to the temperature and humidity fluctuation. Improper environmental conditions may seriously shorten the retention period of such articles. This logger can help the user to keep stable temperature and humidity and avoid insect attack, etc.

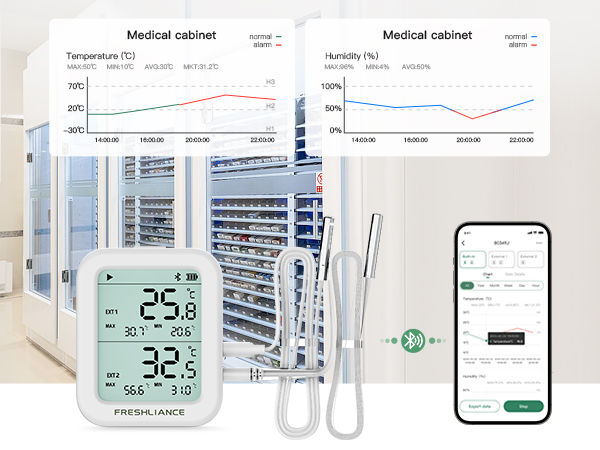

In drugs management, some drugs have strict requirements for temperature and humidity. Any fluctuations may cause loss of efficacy or spoilage. This logger will be an ideal instrument to keep the drugs within proper temperature and humidity range, without opening the package or the storage cabinet, etc.
Tkeeper
Tkeeper is a mobile APP designed for Freshliance Bluetooth temperature and humidity data loggers. Both Android and iOS versions are available. This APP works with wireless communication via Bluetooth technology. It supports remote device configuration and control, online data viewing, filtration, analysis and synchronization among multiple users, as well as data export with signature and email service. It also features powerful graphing functionality and automatic data analysis with the results of Max., Min., Avg. and MKT values, etc., as well as free data cloud storage for 2 years.
It works with BlueTag T10, BlueTag TH10, BlueTag TH20, and BlueTag 30. Multiple devices can be added to the APP simultaneously, so as to help users to manage both devices and data efficiently. And for a device with multiple monitoring channels (with one or two external probes), the APP will automatically identify the probes and support separate configuration, data viewing and export for each monitoring channel.
In addition, this APP supports multiple languages, such as English, Chinese, German, Russian, and Portuguese, Spanish etc., and some practical performance, such as template management, files management and group management.
